The Macaroni sign: The pathognomonic ultrasonography sign of Takayasu arteritis
El signo de Macaroni: el signo de ultrasonido patognomónico de la arteritis de Takayasu
Visits
...
Arghya Chattopadhyay, Sanjay Jain
Corresponding author
sanjayvanita@yahoo.com

Corresponding author.
Clinical Immunology and Rheumatology Services, Department of Internal Medicine, Postgraduate Institute of Medical Education and Research, Chandigarh, India
Article information
Full Text
Bibliography
Download PDF
Statistics
Figures (1)
Full Text

An 18-year-old female presented with complaints of low-grade fever, easy fatigability, claudication pain in all four limbs and transient loss of vision in both eyes for last 6 months. On evaluation, she was found to have absent all peripheral pulses along with bruit over the bilateral carotid artery, bilateral subclavian artery, over back in the mid-scapular region and left renal artery. On ultrasound B mode scanning of the right carotid artery on longitudinal [Fig. 1a] and transverse [Fig. 1b] cuts, showed homogenous, mid-echoic, circumferential wall thickening, a rare but pathognomonic sign of Takayasu arteritis known as ‘Macaroni sign’. Similar findings were present on the left side also. This uncommon ultrasonography finding was first described by Maeda et al.1

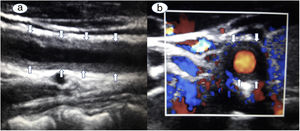

Fig. 1.

Ultrasound B mode scanning of the right carotid artery on longitudinal [a] and transverse [b] cuts, showed homogenous, mid-echoic, circumferential wall thickening.

(0.1MB).

Takayasu arteritis is a granulomatous vasculitis affecting aorta and its branches, and onset usually before 50 years of age.2 The chronic vascular inflammation leads to adventitial thickening, and intima-medial hyperplasia due to cellular infiltrates. Chronic and persistent inflammation leads to fibrosis of the media and intima may resulting into arterial narrowing and, occasionally thrombosis or aneurysm formation.3 Angiography can show the luminal narrowing and extent of involvement but ultrasonography is a better modality of vessel wall assessment.

Consent

Written consent from the patient has been obtained.

Conflict of Interest

None of the authors have any conflict of interest.

References
[1]
H. Maeda, N. Handa, M. Matsumoto, H. Hougaku, S. Ogawa, N. Oku, et al.
Carotid lesions detected by B-mode ultrasonography in Takayasu's arteritis: “macaroni sign” as an indicator of the disease.
Ultrasound Med Biol, 17 (1991), pp. 695-701
[2]
Jennette JC, Falk RJ, Bacon PA, Basu N, Cid MC, Ferrario F, et al. 2012 Revised International Chapel Hill Consensus Conference nomenclature of vasculitides. Arthritis Rheum. 2013;65:1-11.
[3]
G.S. Kerr, C.W. Hallahan, J. Giordano, R.Y. Leavitt, A.S. Fauci, M. Rottem, et al.
Takayasu arteritis.
